22kw Motor Automatic Foil Coil Wind Machine Heavy Duty For LV Transformer

Name: 22kw Motor Automatic Foil Coil Wind Machine Heavy Duty For LV Transformer
Brand: Zhutang
Price: 1 USD

Brand Name : Zhutang

Model Number : BRJ1400-2

Certification : Main parts with CE

Place of Origin : Jiangsu Province, China

MOQ : 1 set

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 100 sets per year

Delivery Time : 40-45 days

Packaging Details : seaworthy packing

Name : foil coil winding machine

Application : winding dry type transformer foil coil

Cu foil thickness : 0.2-2.0mm

Al foil thickness : 0.3-3.0mm

Foil width : 300-1400mm

Winding power : 22kw

Winding speed : 0-18rpm

Welding : TIG

Contact Now

22kw Motor Heavy Duty Automatic Foil Coil Wind Machine For LV Transformer

Description

22kw Motor Heavy Duty Automatic Foi Coil Wind Machine For LV Transformer BRJ1400-2 is mainly used to wind transformer foil coils and other similar products, the foil conductor can be copper or aluminum strip. This kind of foil winding machine can handle one or two layers of foil conductor and one or two layers of insulation material (such as paper or similar material). Bus bars are welded with TIG welding process. The automatic foil edge alignment makes sure that the coil edges are straight and smooth when winding. Control system is based on PLC. It is easy to operate the machine through a touch screen.

Main Components

1. Main frame

2. Winding unit

3. Foil decoiler

4. Insulation decoiler

5. End-filling strip feeder

6. Cleaning system

7. Cutting system

8. Foil deburring system

9. Edge alignment system

10. Automatic welding unit

11. Electronic control system

12. Pneumatic system

Technical Parameters

Typical standard specifications of BRJ1400-2 are shown below, however these can be easily modified as requested.

Axial Length (foil width):	1,400mm
Max. Finished Coil OD.:	1,000mm
Finished Coil Shape:	oval, round and rectangular,etc.
Conductor Foil Material:	Copper or Aluminum
Conductor Material OD.:	1,000mm
Conductor Material ID.:	500mm
Foil Decoiler Number:	2 pcs
Foil Decoiler Diameter:	adjustable range 400-520mm
Max. Coil Weight:	2,500KG
Winding Mandrel Size:	80×80×1750 mm
Welding Mode:	TIG
Welding Speed:	0-0.8m/min
Cutting Mode:	Electric disc shear
Cutting Speed:	0.8 m/min
Insulation Decoiler Number:	2 pcs
Max. Insulation Material OD.:	400mm
Insulation Material ID.:	76mm
End-filling Strip Feeder:	8 pcs
Edge Alignment System:	Photoelectric sensing
Rectification Precision:	±0.5mm
Electronic Control System:	PLC
User Interface:	10inch (254mm) touch screen
Counting Turns Range:	0 - 9999.9
Total Weight:	8000Kg
Dimension(LWH)	580028502500mm

Product Tags:

foil winding machine

copper wire coil winding machine

Wholesale 22kw Motor Automatic Foil Coil Wind Machine Heavy Duty For LV Transformer from china suppliers

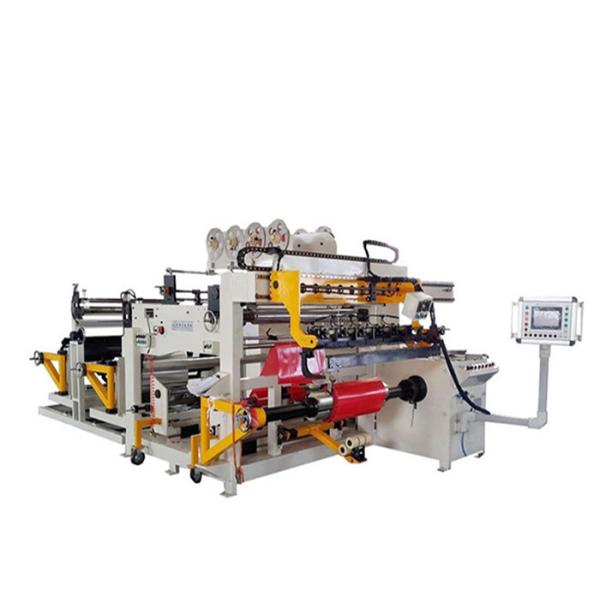

22kw Motor Automatic Foil Coil Wind Machine Heavy Duty For LV Transformer Images
